Smart Technology

SMT516 Specification Datasheet

Specification Datasheet

ML Relay

Product Number



SMT516

IBasic Parameter

Dimensions(mm)

52×43×22

Contact Form

1A(normal open)/1B(normal closed)

Contact Material

Silver Alloy

Max Switching Current(resistive load)

120A

Max Switching Voltage

110VDC/250VAC

Max Switching Power

3300W/30000VA

Weight

80 g

IICoil Parameter(20℃)

Rated Coil Voltage

6VDC

9VDC

12VDC

24VDC

48VDC

Coil Resistance

Single Coil (±10%Ω)

18

40.5

72

288

1152

Double Coil (±10%Ω)

9

20

36

144

576

Pick-up Voltage

≤75%Rated Coil Voltage

Drop-out Voltage

≤75%Rated Coil Voltage

Max. Applicable Voltage

 ≤120%Rated Coil Voltage

Pick-up Time (At Rated Voltage)

≤20ms

Drop-out Time (At Rated Voltage)

≤20ms

Bounce Time

≤2ms

Power Consumption

Single Coil:2W;Double Coil:4W

IIICharacteristic Parameter

Ambient Temp

-40~+70℃

Anti-vibration

10~55Hz,0.5mm (Double Amplitude)

Anti-shock

98m/s2,11ms

R.H.

45%~85%

Contact Resistance

≤2.0mΩ (1A/6VDC testing condition)

Insulated Resistance

1000MΩ  (500VDC)

Dielectric Strength

Between Contacts

2000 VAC 50/60Hz (1 min )

Between Contact & Coil

5000 VAC 50/60Hz (1 min )

Life

Electrical Life

≥1x104 OPS

Mechanical Life

≥1x106 OPS

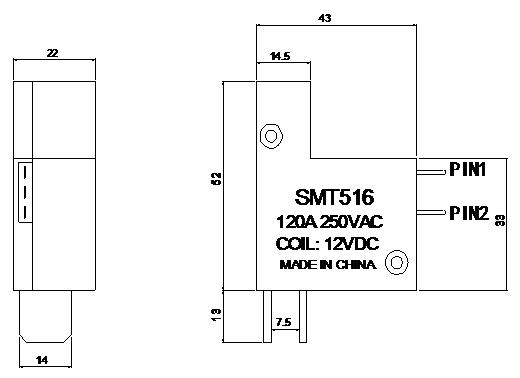

IVProfile Drawing
