Smart Technology
|

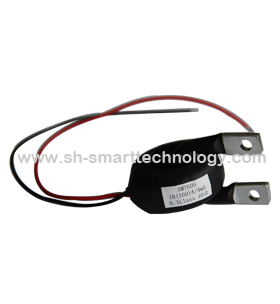

SMT605 Specification Datasheet |
Profile |
|
Parameter |
Primary current(A) |
Secondary current(mA) |
BurdenRb(Ω) |
Max current(A) |
class |
remark |
10 |
4 |
10 |
100 |
0.1 |
|
Ambient |
temperature:-40℃~+70℃;R H≤98(25℃);Height about sea level:≤3000m |
Half sine wave test |
DC Immunity , Error ≤3 % |
Dielectric strength |
Primary winding and secondary wing:≥ 3kV、insulated resistance:≥1GΩ |
Dimension (mm)
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
20 |
35 |
16 |
170 |
25 |
4.0 |
4.5 |
6 |
2.5 |
9.0 |
3 |
|
