Current location:Home > Products > Current Transformer > DC Immunity

Smart Technology

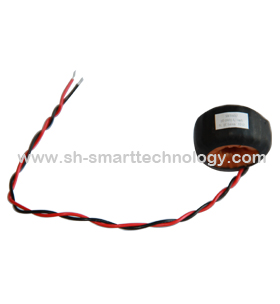

SMT602 Specification Datasheet
Profile
Parameter Primary current(A) Secondary current(mA) BurdenRb(Ω) Max current(A) class remark
10 4 10 60 0.1
Ambient temperature:-40℃~+70℃;R H≤98(25℃);Height about sea level:≤3000m
Half sine wave test DC Immunity , Error ≤3 %
Dielectric strength Primary winding and secondary wing:≥ 3kV、insulated resistance:≥1GΩ
Dimension
(mm)

A B C D E F G H I J K L M
