Smart Technology

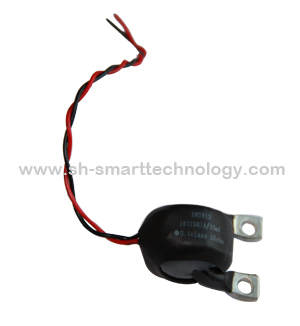

SMT812 Specification Datasheet

Profile



Parameter Primary current(A) Secondary current(mA) Burden
Rb(Ω)
Max current(A) class remark
10 10 15 100 0.1


Ambient temperature:-40℃~+70℃;R H≤98(25℃);Height about sea level:≤3000m
Dielectric strength

Primary winding and secondary wing:≥ 3kV、insulated resistance:≥1GΩ

Dimension
(mm)
A B C D E F G H I J K L M
