Current location:Home > Products > Current Transformer > Alternating Current Transformer

Smart Technology

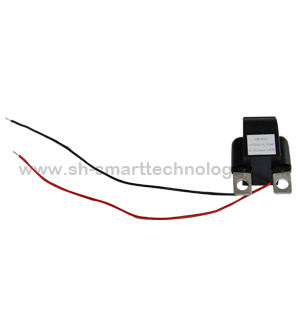

SMT803 Specification Datasheet
Profile

Parameter Primary current(A) Secondary current(mA) BurdenRb(Ω) Max current(A) class remark
10 10 10 100 0.1
Ambient temperature:-40℃~+70℃;R H≤98(25℃);Height about sea level:≤3000m
Dielectric strength Primary winding and secondary wing:≥ 3kV、insulated resistance:≥1GΩ
Dimension
(mm)

A B C D E F G H I J K L M
9.2 5.2 20 30 17 47 2.2 31 11
